Wheel Truing Brake Shoe Co.: Flange Cutters

Flange Cutters

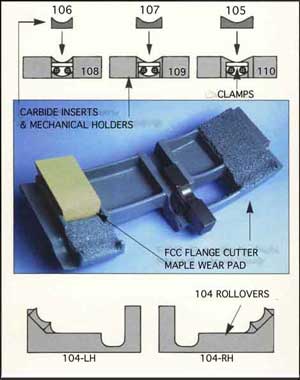

Flange Cutter

Disposable Carbide Inserts
#106 = 1 3/8" #107 = 1 5/8" #105 = 2 1/16"
Mechanical Holders
#108 used with 106 carbide inserts #109 used with 107 carbide inserts #110 used with 105 carbide inserts

#111 Clamps
Used to secure the carbide inserts #106, 107, 105 to the mechanical holders #108, 109, & 110.

#104 Rollovers fit both FCC #501 and FCC #601 to quickly cut excess "Roll Over" wheel material on the treadside.

#112 Hard Maple Wear Pads
Fit into the proper cutting position on the wheel for both FCC #501 & FCC #601 Flange Cutters Both Fcc #501 (left & right) and FCC #601 (left & right) have the same basic overall dimensions, except for the brake head key pin side. FCC #501 inside dimensions measure 1/2" x 1" which is interchangeable with our pattern #186. FCC #601 inside dimensions measure 3/4" x 1 1/2" & is interchangeable with our patterns #191 & #628. FCC #501 Replaces Abrasive Brake Shoe #186 and brake shoes #A-32, A-28, A-4409, V183 Cobra Long, A-12, A-24, A-27, G-4747 ALCO 1000

FCC #601 Replaces Abrasive Brake Shoe #191 & #628 and brake shoes #A-29, G-4612, B-36, B3622, AAR-1, AAR-3, G-4684, G-6430, A-30, G-4645, G-4426, B-3637, EMD-6P-7, EMD-6P-38-2, V183 Short, GE-V23B, EMD-6P-9, EMD-CF-7

Both FCC #501 (left & right) and FCC #601 (left & right) have the same basic overall dimensions, except for the brake head key pin side. FCC #501 inside dimensions measure 1/2" x 1" which is interchangeable with our pattern #186. FCC #601 inside dimensions measure 3/4" x 1 1/2" & is interchangeable with our patterns #191 & #628.
